SA-WS-150

Automatic Horizontal Wire Coil Packaging Line

Horizontal coil wrapping machine with C-hook lifter for packaging, weighing and labeling of wire rod coils and slit coils

  • Packaging speed 1min/pc
  • Inner diameter of coil 400mm (±20mm)
  • Outer diameter of coil 700mm (±30mm)
  • Coil length 210mm
Request a Quote

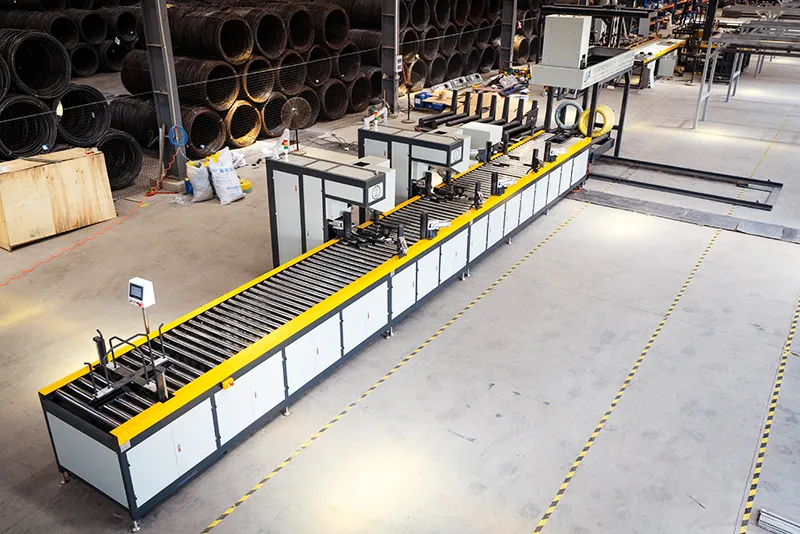

SA-WS-150 Automatic Horizontal Wire Coil Packaging Line

The horizontal wire coil packaging line is designed for high-output operations, ideal for manufacturers handling large volumes of wire rod coils and slit coils. It features manual feeding, and is equipped for automated packaging, weighing, labeling, and automated storage. Built with two integrated coil wrapping machines, this coil wrapping line delivers double the packaging speed, making it a reliable choice for facilities with demanding production throughput. Labeling data can be uploaded automatically to your ERP or MES system, enabling full data traceability and streamlined production management.

Wrapped coils are effectively protected against moisture, dust, rust, and surface scratches, ensuring excellent product condition during storage and transport.

Applications

Suitable for packaging ring-shaped metal wire products such as stainless steel, low-carbon steel, high-carbon steel, galvanized wire, copper strip, copper wire, and aluminum strip.

Transforming Coils: From Exposure to Protection

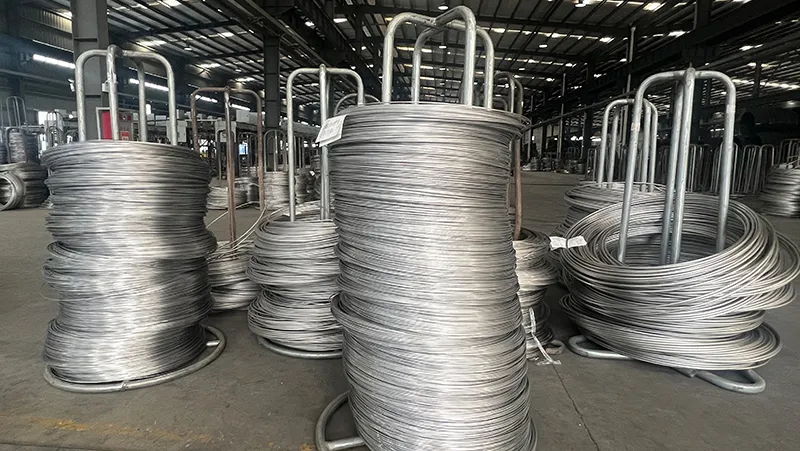

SA-WS-150 Automatic Horizontal Wire Coil Packaging LineBefore packaging

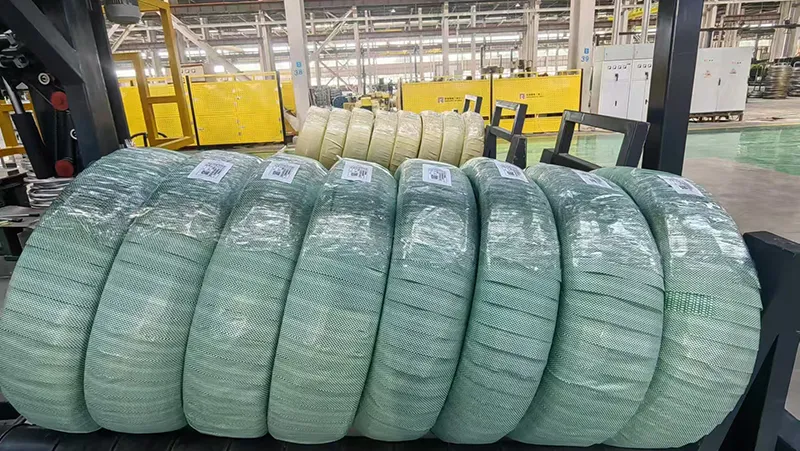

SA-WS-150 Automatic Horizontal Wire Coil Packaging LineAfter packaging

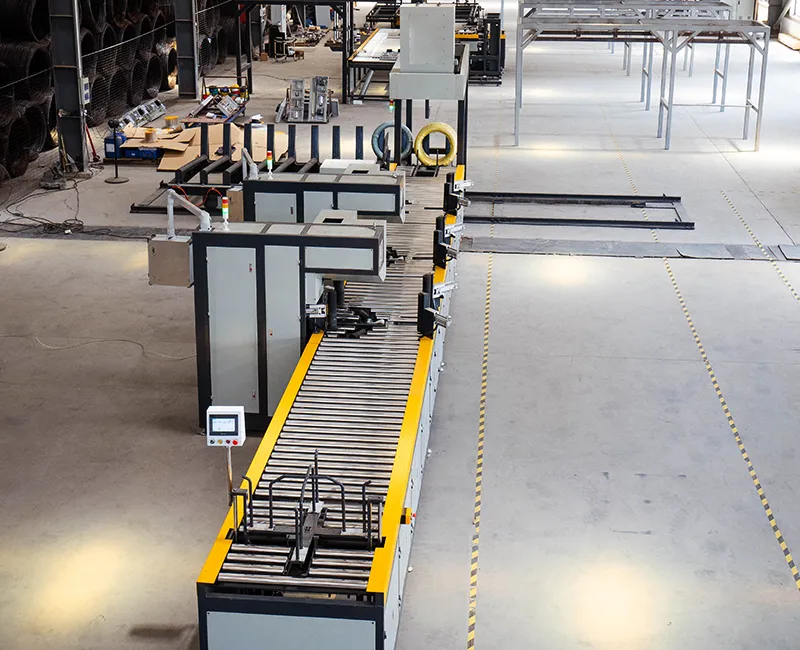

SA-WS-150 Automatic Horizontal Wire Coil Packaging Line
Specifications
  • Dimensions (L×W×H): 13×9×3.2m
  • Inner diameter of coil: 400mm ±20mm
    (machine can be designed based on the required size of customer's products)
  • Outer diameter of coil: 700mm ±30mm
    (machine can be designed based on the required size of customer's products)
  • Coil length: 210mm
  • Weight: Max. 200kg
  • Packaging speed: 1min/pc
  • Voltage: AC380V 50Hz
  • Total power: ≤30kW
  • Air pressure: ≥0.6MPa
SA-WS-150 Automatic Horizontal Wire Coil Packaging Line
Features
  • Reduces packaging material usage by approximately 30%
  • Equipped with automatic alarm system for fault detection
  • Operable by a single person, significantly reducing labor requirements
  • Horizontal structure ensures lower center of gravity and greater stability compared to vertical models
  • Compatible with AGV automatic feeding, enabling fully intelligent operation
  • Supports remote monitoring and control
  • Allows flexible selection of packaging materials and adjustable wrapping configurations
  • Fitted with Siemens electrical components for reliability
  • Fully customizable dimensions based on your coil sizes and packaging requirements
  • High structural stability with a wide base and low center of gravity, enhancing vibration resistance and making the machine easier to operate and maintain

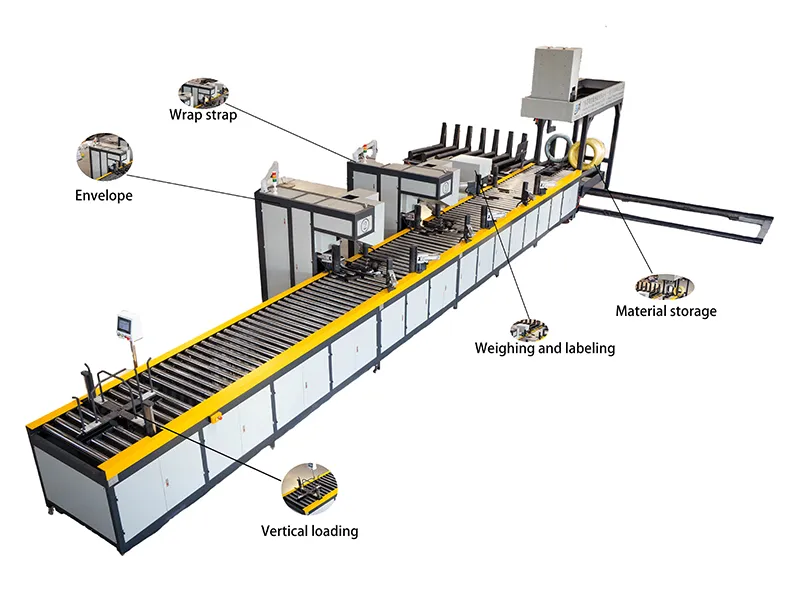

Functions
  • Manual feeding (optional upgrades available: AGV, forklift, or overhead crane)
  • Vertical lifting and transfer of coil material
  • Automated coil wrapping using your choice of woven tape, PE film, or kraft paper
  • Automatic weighing and labeling with fully customizable label content
  • Specification-based storage of finished products
  • Real-time data sharing via automatic upload of label information to your ERP or MES system
Optional
  • Coil centering, weighing, and coiling
  • Material conveying and packaging
  • Real-time labeling
  • Material classification
  • Temporary product storage
  • Data input for integration and traceability
  • Automated unloading

Yes, we provide comprehensive training, covering equipment operation, daily maintenance essentials, and basic troubleshooting. This ensures your team can confidently operate the machine and integrate it into your production line with minimal downtime.

In addition to metal wire products, our coil wrapping line can also be adapted to package other ring-shaped items within suitable size ranges such as hoses, tires, bearings, and steel strips.

Our wire coil wrapping machine is equipped with a PLC control system. By simply entering the width, inner diameter, and outer diameter into the system, it automatically adjusts the strapping length and the number of coil rotations to accommodate different coil sizes.
