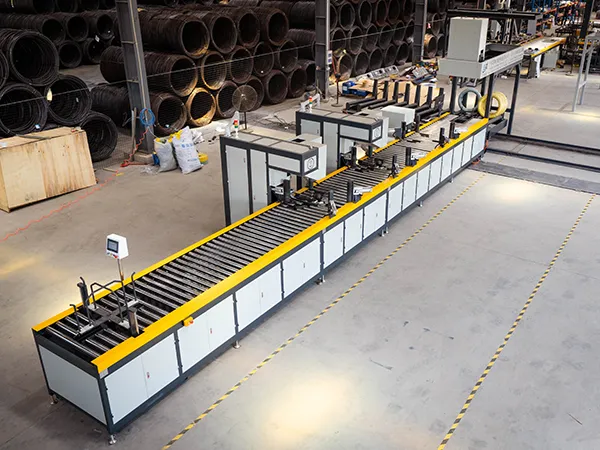

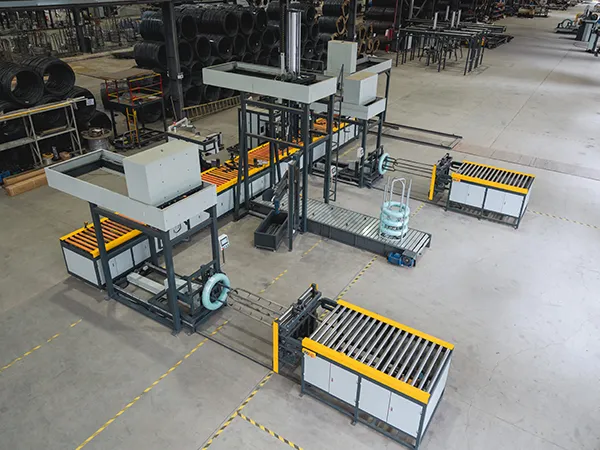

Our automatic horizontal wire coil packaging line is designed to meet the high-volume and stable packaging needs of wire rod coils and slit coils to withstand the rigors of industrial environments. Wrapping is performed with the coil placed horizontally, and packaging speed options range from 45 seconds to 1.5 minutes per coil, depending on the selected configuration.

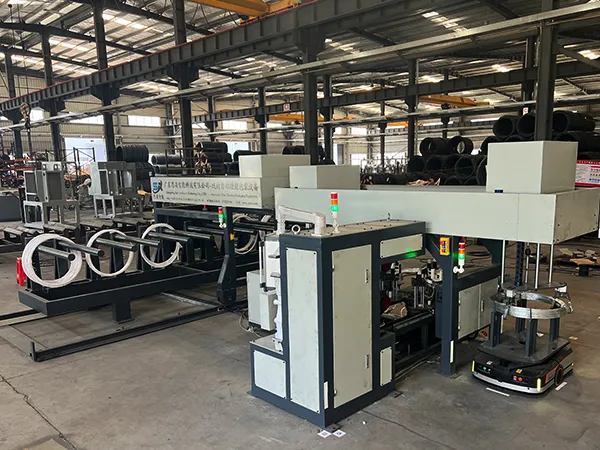

In addition to the standard manual loading setup, the wire coil packaging line supports flexible loading options based on your facility and workflow including AGV systems, forklifts, and overhead cranes. The wrapping system is compatible with a variety of packaging materials such as woven tape, PE film, and kraft paper, offering packaging flexibility for different product protection requirements.
We also provide tailored equipment recommendations and customization based on your coil specifications, production capacity, and plant layout, ensuring you get the most efficient and suitable solution for your operation.
Applications
This horizontal wire coil packaging line is suitable for through-the-eye wrapping of wire rod coils, including: stainless steel wire, low-carbon steel, high-carbon steel, galvanized wire, copper strip, copper wire, aluminum strip, and iron wire.
-
- SA-WS-10 Automatic Horizontal Wire Coil Packaging Line
- Packaging speed: 1min/pc
- Inner diameter of coil: 550mm (±20mm)
- Outer diameter of coil: 650mm (±20mm)
- Weight 2.5-20kg
-
- SA-WS-25 Automatic Horizontal Wire Coil Packaging Line
- Packaging speed: 45sec/pc
- Inner diameter of coil: 280mm (±20mm)
- Outer diameter of coil: 440mm (±20mm)
- Weight Max. 50kg
-
- SA-WS-35 Automatic Horizontal Wire Coil Packaging Line
- Packaging speed: 50sec/pc
- Inner diameter of coil: 280-330mm
- Outer diameter of coil: 450-500mm
- Weight 50kg
-
- SA-WS-150 Automatic Horizontal Wire Coil Packaging Line
- Packaging speed: 1min/pc
- Inner diameter of coil: 400mm (±20mm)
- Outer diameter of coil: 700mm (±30mm)
- Weight Max. 200kg
-
- SA-WS-200 Automatic Horizontal Wire Coil Packaging Line
- Packaging speed: 1.5min/pc
- Inner diameter of coil: 480mm (±20mm)
- Outer diameter of coil: 700mm (±20mm)
- Weight 200kg
-
- SA-WS-400 Automatic Horizontal Wire Coil Packaging Line
- Packaging speed: 1.5min/pc
- Inner diameter of coil: 460mm (±20mm)
- Outer diameter of coil: 700mm (±20mm)
- Weight 15-200kg
- Reduces packaging material usage by approximately 30%
- Equipped with automatic alarm system for fault detection
- Operable by a single person, significantly reducing labor requirements
- Horizontal structure ensures lower center of gravity and greater stability compared to vertical models
- Compatible with AGV automatic feeding, enabling fully intelligent operation
- Supports remote monitoring and control
- Allows flexible selection of packaging materials and adjustable wrapping configurations
- Fitted with Siemens electrical components for reliability
- Fully customizable dimensions based on your coil sizes and packaging requirements
- High structural stability with a wide base and low center of gravity, enhancing vibration resistance and making the machine easier to operate and maintain
