Ideal for medium-volume operations, our semi-automatic vertical coil wrapping machines are designed to package ring shaped metal items such as steel tape, bearings, wire coils, and aluminum strips. It replaces manual wrapping with a faster, more reliable process that reduces labor effort and keeps output consistent. These coil wrapping systems ensure clean, uniform wrapping and supports multiple packaging materials, including kraft paper, woven tape, and PE film, for enhanced protection against dust, moisture, and surface damage.

Application
Suitable for through-the-eye wrapping of various coil-shaped metal products, including stainless steel wire, low-carbon and high-carbon steel wire, galvanized wire, copper strips, copper wire, and aluminum strips.

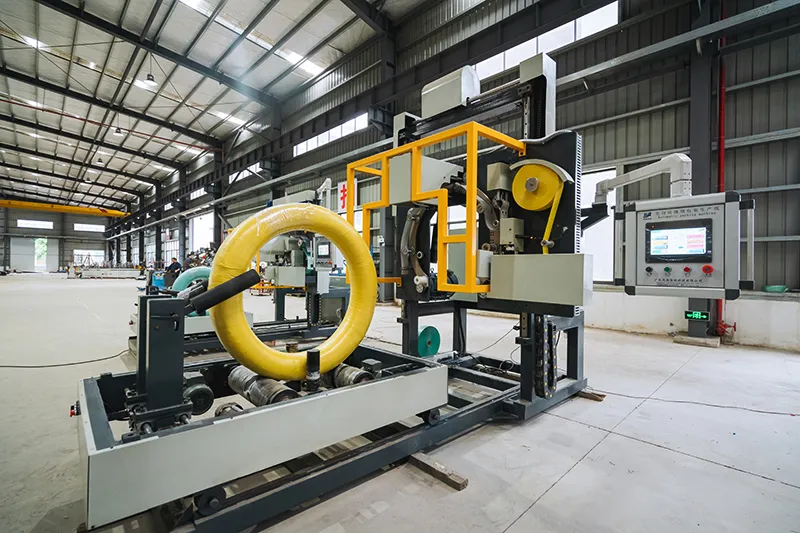

    1. SA-LS-600 Semi-Automatic Coil Wrapping Machine
    2. SA-LS-600 Semi-Automatic Coil Wrapping Machine
      Packaging speed: 50sec/pc
      Inner diameter of coil: 350mm (±20mm)
      Outer diameter of coil: 600mm (±20mm)
      Coil length: 210mm
      These semi-automatic wrapping systems can be adapted to different coil sizes and are commonly used in wire and strip coil for efficient, consistent packaging that simplifies storage and transportation. View Details

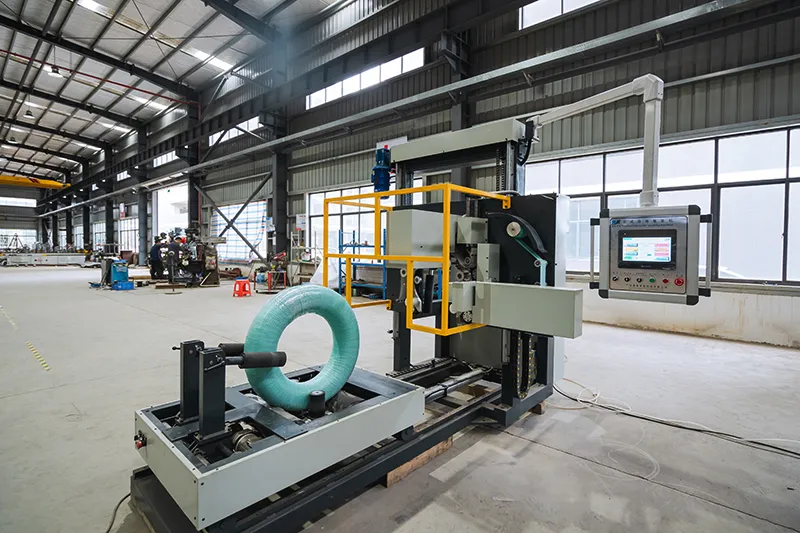

    1. SA-LS-500 Semi-Automatic Coil Wrapping Machine
    2. SA-LS-500 Semi-Automatic Coil Wrapping Machine
      Packaging speed: 50sec/pc
      Inner diameter of coil: 300mm
      Outer diameter of coil: 500mm
      Coil length: 210mm
      Maximizing floor space in wire coil packaging operations requires compact solutions that don’t compromise efficiency. View Details

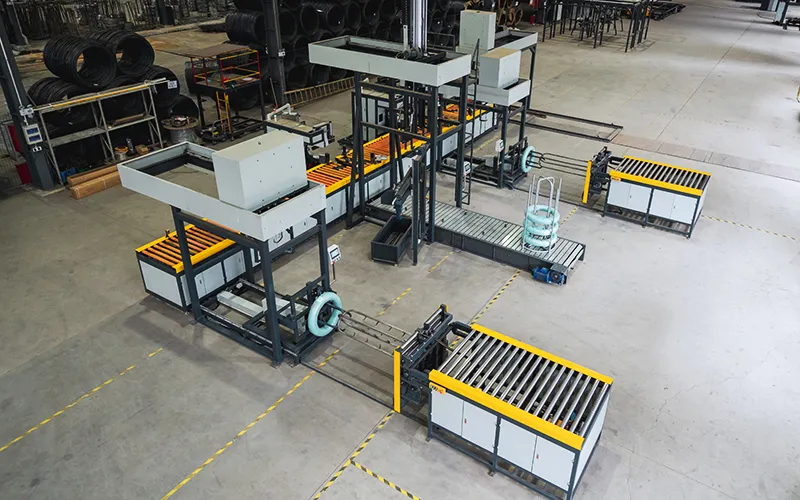

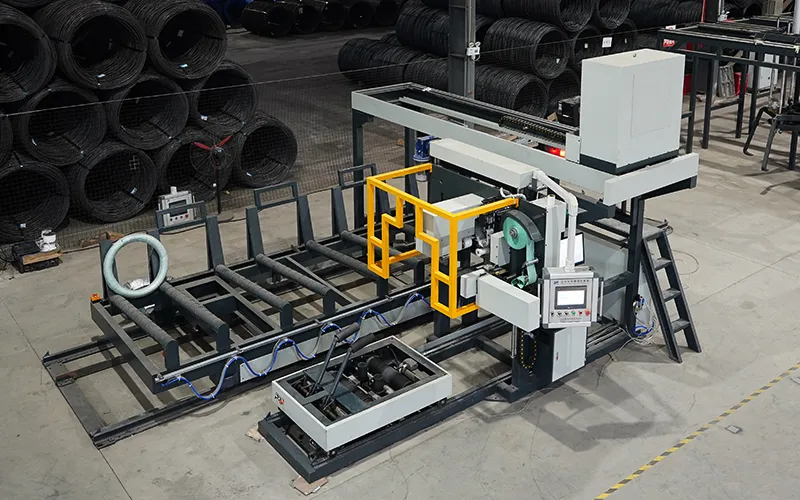

An automatic packaging line is built for large-scale, high-efficiency production. It handles bulk packaging tasks at the end of the production line and is generally part of a fully integrated packaging system.
Individual wire coil packaging machines, on the other hand, are used for specific tasks such as wrapping, strapping, or labeling. They operate independently, offer greater flexibility, and are ideal for smaller facilities or individual packaging processes.

  • Manual coil loading (via AGV, forklift, or overhead crane)
  • Automatic height adjustment based on coil size
  • Coil cart moves to the wrapping station (supports PE film, woven tape, kraft paper, etc.)
  • After wrapping, the cart returns to the loading area
  • Manual unloading

Our vertical coil wrapper is designed for ring-shaped metal items such as bearings, steel tape, wire coils, and aluminum strips. It fully replaces manual wrapping, offering a clean and consistent result. Wrapping time is around 50 seconds per piece, helping to boost productivity and reduce operator workload.
Are you looking for individual coil packaging solution?

Contact with us via sales@gdslao.com
