SA-LS-500

Semi-Automatic Coil Wrapping Machine

Vertical coil wrapper for packaging wire rod coils and slit coils of up to 300mm ID and 500mm OD

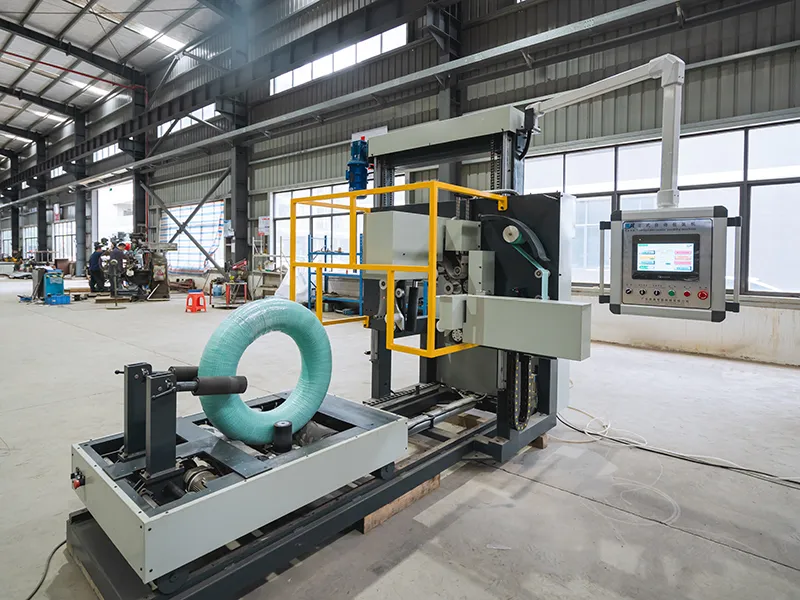

SA-LS-500 Semi-Automatic Coil Wrapping Machine
  • SA-LS-500 Semi-Automatic Coil Wrapping Machine
  • SA-LS-500 Semi-Automatic Coil Wrapping Machine
  • SA-LS-500 Semi-Automatic Coil Wrapping Machine
  • SA-LS-500 Semi-Automatic Coil Wrapping Machine
  • SA-LS-500 Semi-Automatic Coil Wrapping Machine

    • SA-LS-500

    Semi-Automatic Coil Wrapping Machine

    Vertical coil wrapper for packaging wire rod coils and slit coils of up to 300mm ID and 500mm OD
    • Packaging speed 50sec/pc
    • Inner diameter of coil 300mm
    • Outer diameter of coil 500mm
    • Coil length 210mm

    Maximizing floor space in wire coil packaging operations requires compact solutions that don’t compromise efficiency. That’s why this vertical coil wrapper is designed to handle wire rod and slit coils with inner diameters up to 300 mm and outer diameters up to 500 mm. Its semi-automatic process completes each wrapping cycle in approximately 50 seconds and supports various coil sizes and packaging materials. A practical choice for manufacturers aiming to streamline coil wrapping while keeping the layout efficient.

    Request a Quote
    SA-LS-500 Semi-Automatic Coil Wrapping Machine
    Specifications
    • Type: Vertical coil wrapping machine
    • Dimensions (L×W×H): 2×3.5×3m
    • Inner diameter of coil: 300mm
    • Outer diameter of coil: 500mm
    • Coil length: 210mm
    • Weight: Max. 2000kg
    • Packaging speed: 50sec/pc
    • Voltage: AC380V/50Hz
    • Total power: ≤18kW
    • Air pressure: ≥0.6MPa
    Features
    • Supports both manual and automatic operation modes

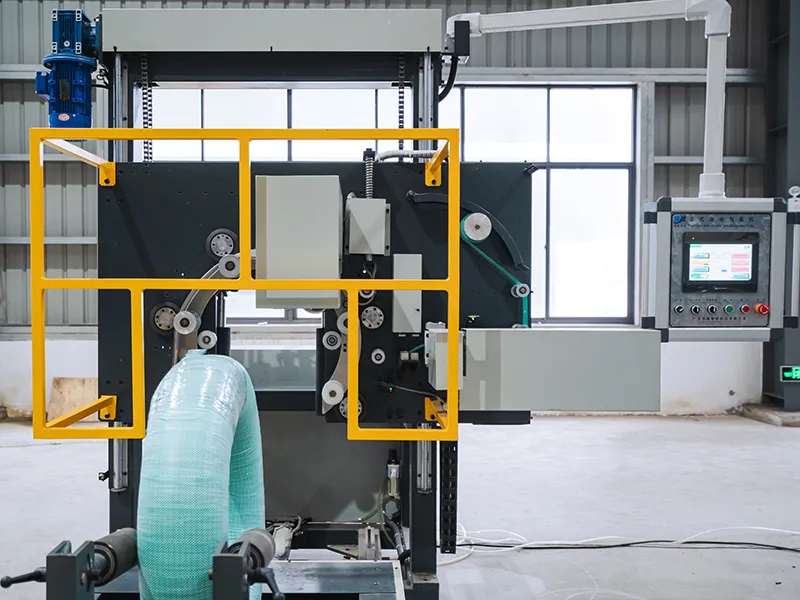

    • Equipped with a PLC-based control system and an HMI interface
    • Automatically adjusts strapping length and coil count when width, inner diameter, and outer diameter are entered
    • Compatible with various packaging materials, with strapping settings adaptable to specific production needs
    • Displays on-screen error messages for easier troubleshooting
    • Comes with an independent control cabinet to simplify system maintenance and wiring management
    How It Works
    • The coil is manually loaded using an AGV, forklift, or overhead crane, depending on the setup
    • The packaging system adjusts its height automatically to match the size of the incoming coil

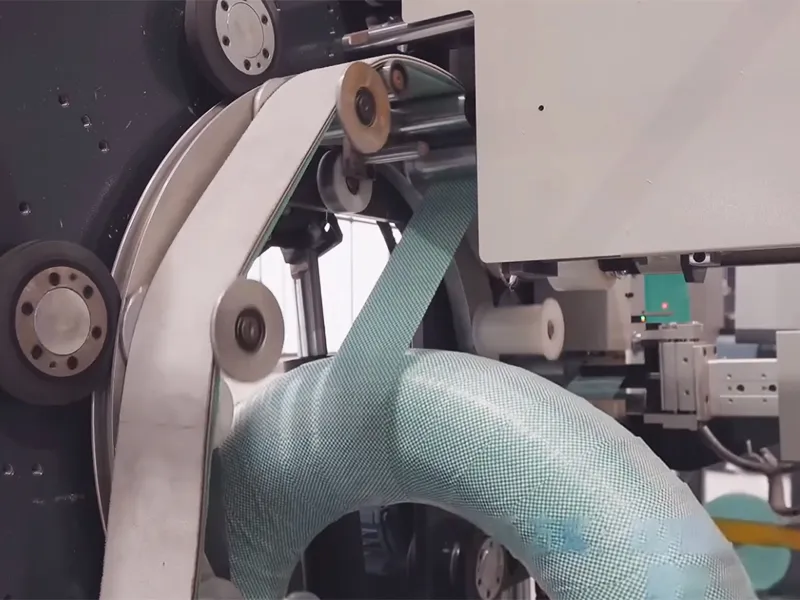

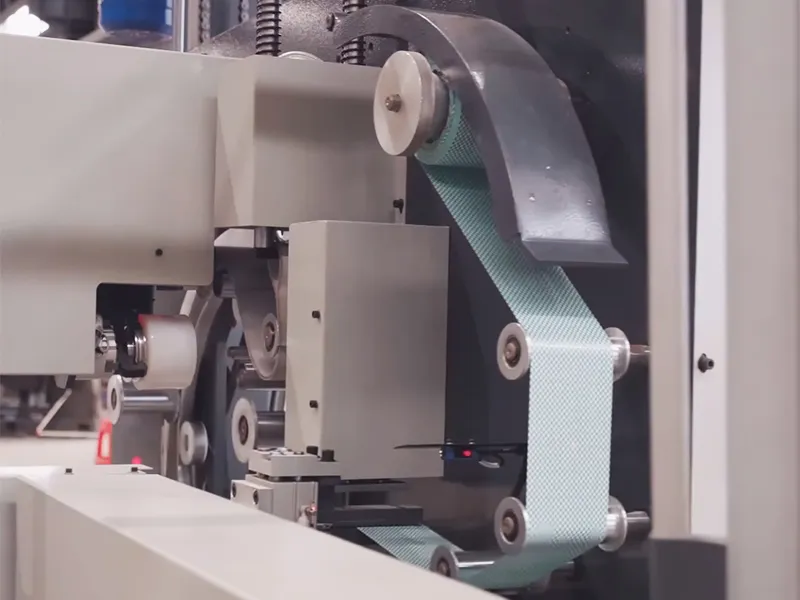

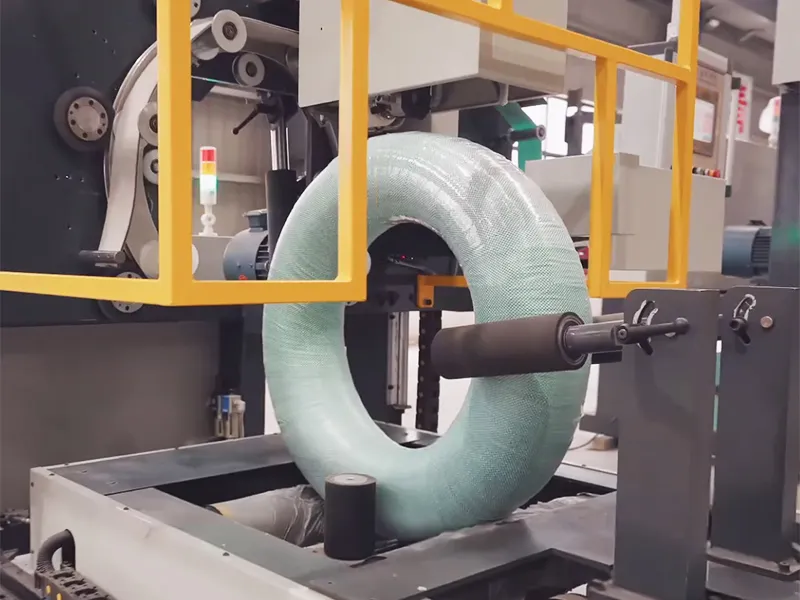

    • The coil cart transfers the product to the wrapping area, where materials like woven tape, PE film, or kraft paper can be used
    • Once wrapping is complete, the cart returns to the initial position
    • The wrapped coil is manually unloaded and ready for storage or transport

    An automatic packaging line is built for large-scale, high-efficiency production. It handles bulk packaging tasks at the end of the production line and is generally part of a fully integrated packaging system.
    Individual wire coil packaging machines, on the other hand, are used for specific tasks such as wrapping, strapping, or labeling. They operate independently, offer greater flexibility, and are ideal for smaller facilities or individual packaging processes.

    • Manual coil loading (via AGV, forklift, or overhead crane)
    • Automatic height adjustment based on coil size
    • Coil cart moves to the wrapping station (supports PE film, woven tape, kraft paper, etc.)
    • After wrapping, the cart returns to the loading area
    • Manual unloading

    Our vertical coil wrapper is designed for ring-shaped metal items such as bearings, steel tape, wire coils, and aluminum strips. It fully replaces manual wrapping, offering a clean and consistent result. Wrapping time is around 50 seconds per piece, helping to boost productivity and reduce operator workload.
