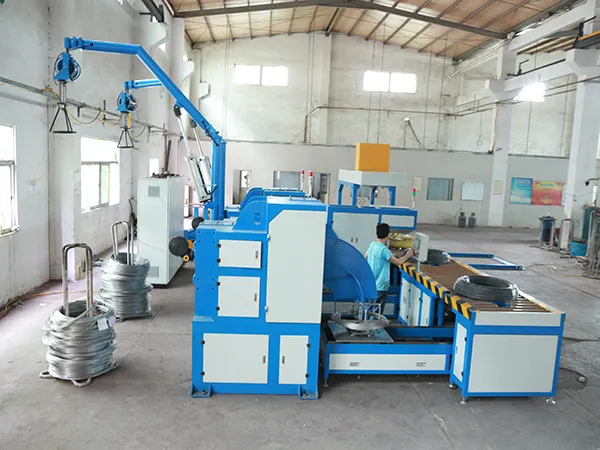

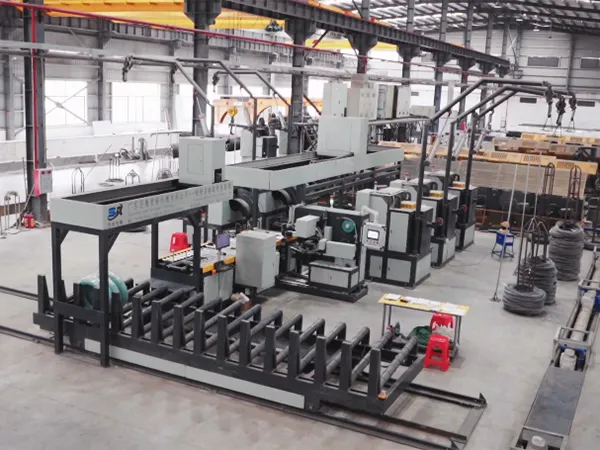

The automatic wire drawing and packaging line is a fully automated solution that integrates wire drawing and coil packaging into one continuous production line. It is configured with either 2 or 6 dead block or inverted bull block wire drawing machines, based on your capacity requirements.
This wire packaging system is ideal for manufacturers producing metal wire coils that require both precise drawing and through-the-eye wrapping. We offer tailored configurations based on your wire type, production volume, and factory layout to deliver the most efficient solution for your operation.
-
- SA-2XBZ-100 Automatic Wire Drawing & Packaging Line
- Packaging speed: 65sec/pc
- Inner diameter of coil: 450mm (±20mm)
- Outer diameter of coil: 800mm (±20mm)
- Coil length: 250-500mm
- Weight: 250-400kg
-
- SA-2XBZ-200 Automatic Wire Drawing & Packaging Line
- Packaging speed: 65sec/pc
- Inner diameter of coil: 450mm (±20mm)
- Outer diameter of coil: 800mm (±20mm)
- Coil length: 250-500mm
- Weight: 100-250kg
Features
- High production rate of 1 coil per minute, with stable automated wrapping
- Reduces labor costs by over 90% and material usage by up to 30%
- Integrated automatic weighing, label printing, and label application, with full ERP connectivity for report generation and error-free data tracking
- PLC programmable control system with HMI interface, powered by Siemens or Mitsubishi
- Supports a wide range of coil sizes and metal wire types
- Manual and automatic operation modes selectable
- Coil dimensions (width, ID, OD) can be input directly to the PLC for automatic adjustment of strapping length and coil count
- Flexible support for different packaging materials and adjustable strapping preferences
- Built-in error alert system with automatic alarm display
- Sturdy steel-structured frame with independent control cabinet for long-term reliability
What should I do if the stretch film breaks during wrapping?
What should I do if the stretch film breaks during wrapping?
Film breakage is a common issue and often caused by poor film quality, incorrect tension settings, or sharp edges in the film path. To prevent this, use high-quality stretch film, adjust the film tension based on the product size, and regularly inspect the film path to remove burrs or sharp points that could damage the material.
What type of control system does the packaging line use?
What type of control system does the packaging line use?
The wire drawing and packaging system uses a PLC programmable control system from Siemens or Mitsubishi, with an HMI interface. By entering the coil’s width, inner diameter, and outer diameter, the system can automatically adjust both the strapping length and the number of coil loops, ensuring precise and efficient operation.
