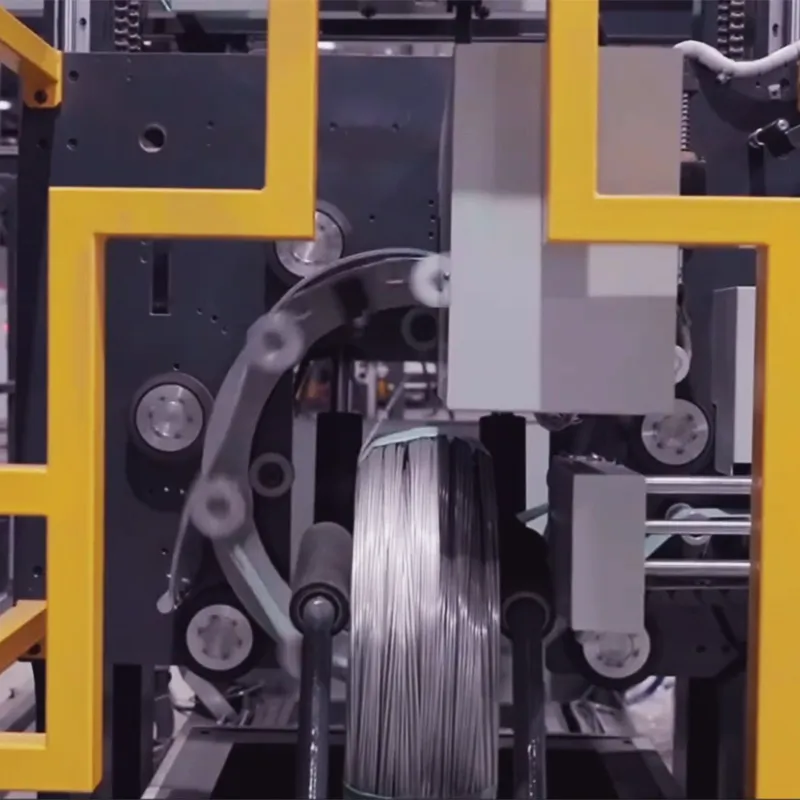

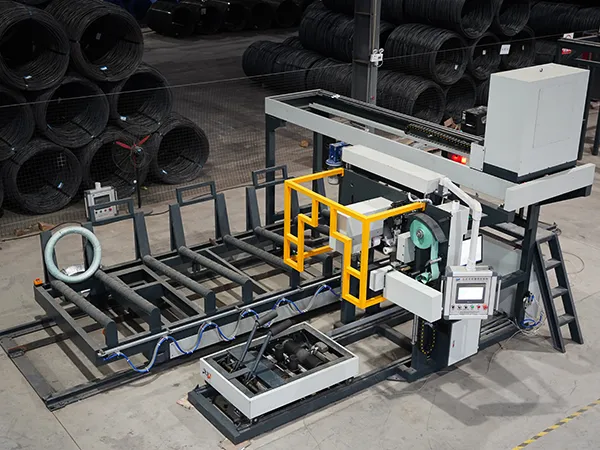

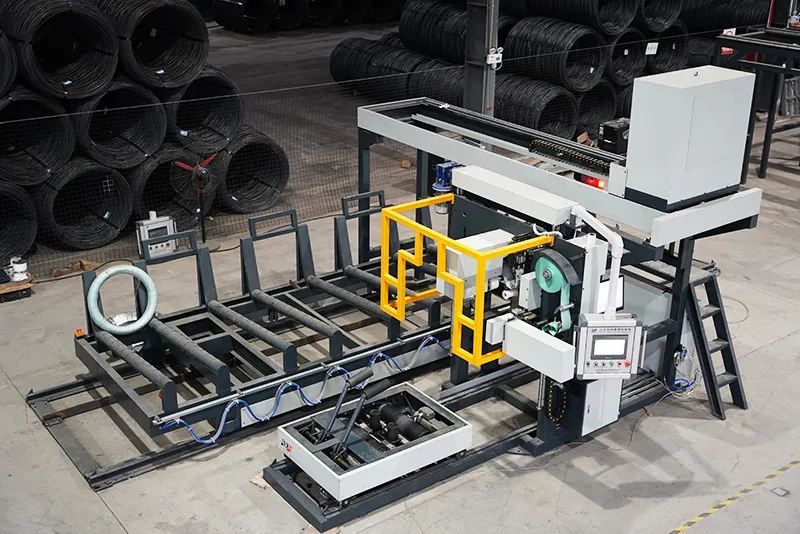

The vertical wire coil packaging line combines a semi-automatic strapping unit with an automated storage system, offering a space-saving and intelligent solution for wire rod coils and slit coils. Operators simply input the coil dimensions into the system, and the wrapping machine automatically adjusts to match the required coil size for accurate and efficient wrapping. The coil wrapper also includes automated weighing and customizable label printing, with all label data automatically uploaded to your ERP or MES system for real-time data sharing and production traceability.
Transforming Coils: From Exposure to Protection

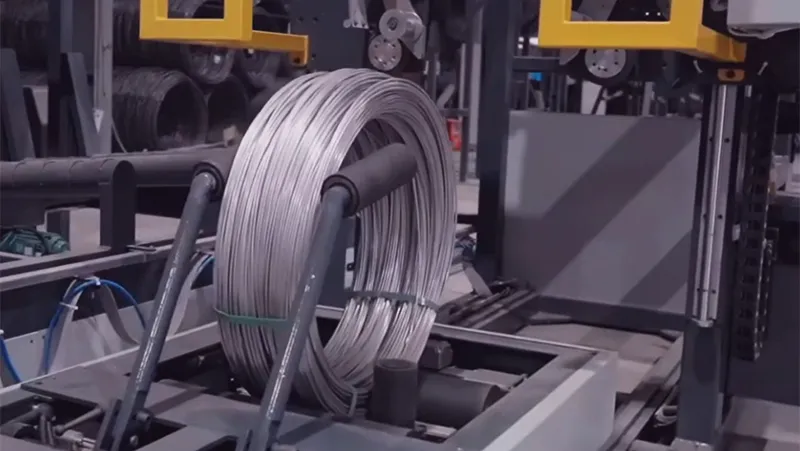

Before packaging

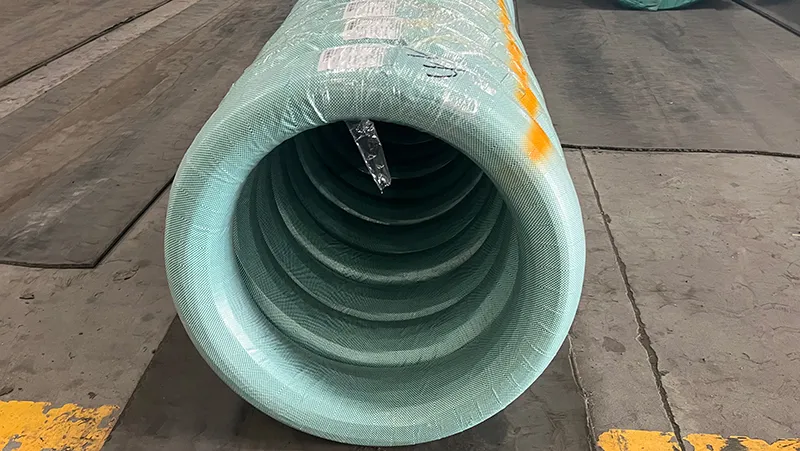

After packaging
Features
- High productivity with a cycle time of approximately 1.5 minutes per coil, delivering stable and efficient automatic wrapping
- Reduces labor costs by over 85% and packaging material usage by up to 30%
- Integrated automatic weighing, label printing, and application, with direct connection to ERP systems for error-free reporting and data management
- Controlled by a PLC programmable system with an intuitive HMI interface
- Compatible with a wide range of coil sizes and materials, supporting diverse production needs
- Selectable manual and automatic operation modes for flexible use
- Automatic adjustment of strapping length and coiling cycles based on entered width, inner diameter, and outer diameter
- Supports custom packaging material selection and adjustable strapping settings
- Automatic alarm system for error detection and fault alerts
- Built with a dedicated control cabinet and a structural steel frame for durability
- Vertical structure minimizes footprint and makes it ideal for space-constrained facilities
Optional

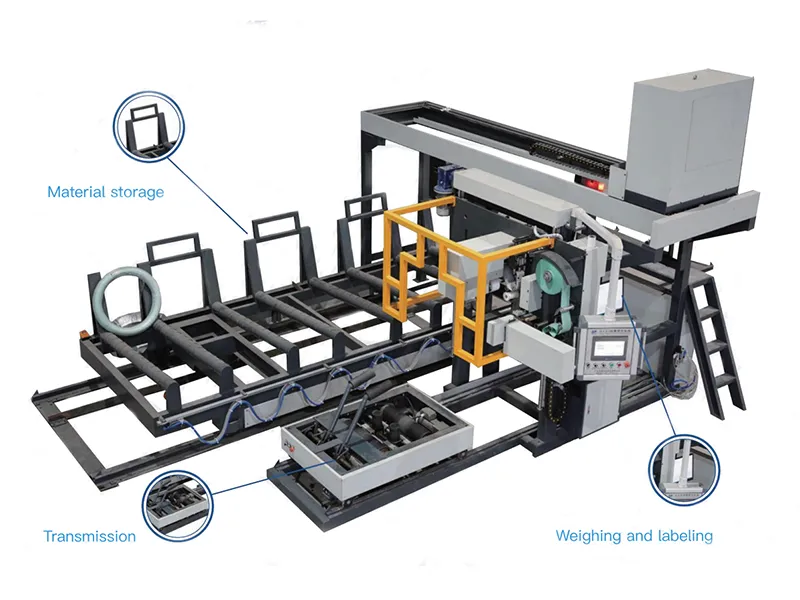

- Coil centering, weighing, and coiling
- Material conveying and packaging

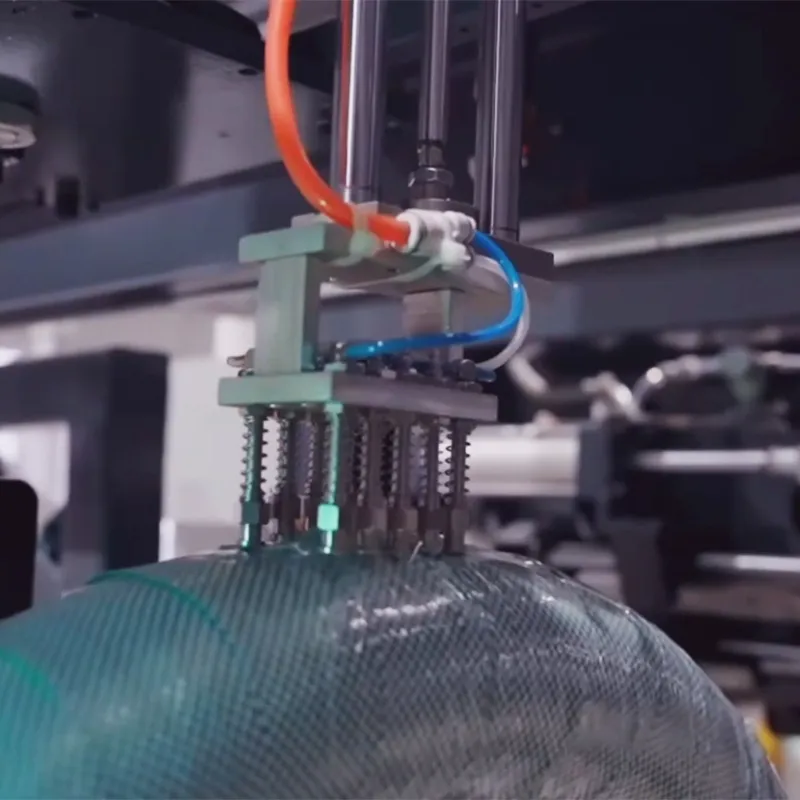

- Real-time labeling
- Material classification
- Temporary product storage
- Data input for integration and traceability
- Automated unloading
Yes. We offer tailored equipment recommendations and customization based on your metal wire packaging requirements, production volume, and factory layout. The system supports various packaging materials, including woven tape, PE film, and kraft paper, ensuring flexibility for different product protection needs.
Our vertical wire coil packaging lines can be integrated with wire drawing machines, coilers, and other processing equipment to build a fully automated production system. Integration enhances both efficiency and product consistency, and we can adapt the solution to fit your unique operational setup.
The vertical layout is ideal for facilities with limited floor space as the compact structure minimizes its footprint, allowing more efficient use of factory space. The wire rod coil packaging system includes a semi-automatic strapping unit and automatic storage module, offering a streamlined and space-saving packaging solution.
The vertical coil packaging line operates at a high production rate of 1–1.5 minutes per coil, featuring stable and fully automatic wrapping performance.

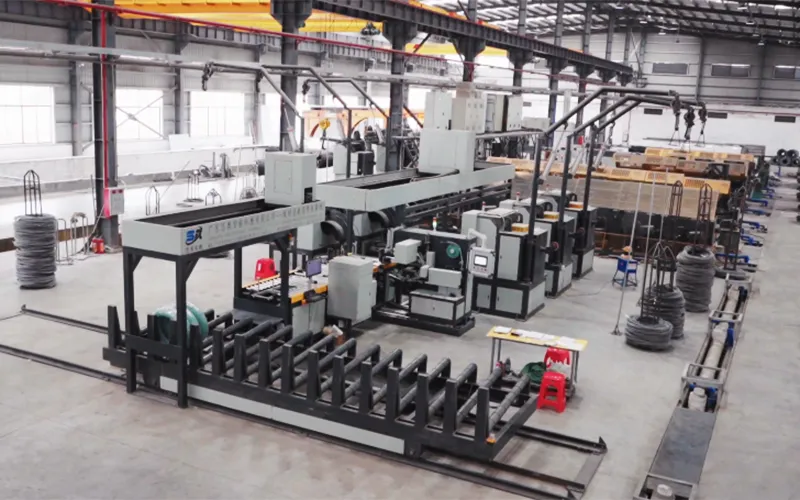

Related Coil Packing Lines
